For the precise control of normal and high constant volume flows

Rectangular self-powered volume flow controllers for the control of supply air or extract air in constant air volume systems

Suitable for volume flow rates up to 12,096 m³/h or 3,360 l/s
Volume flow rate can be set using an external scale, no tools required
High control accuracy
No on-site test measurements required for commissioning
Suitable for airflow velocities of up to 8 m/s
Casing air leakage to EN 1751, class C

Optional equipment and accessories

Acoustic cladding for the reduction of case-radiated noise
Secondary silencer Type TX for the reduction of air-regenerated noise
Hot water heat exchanger Type WT for reheating the airflow
Actuator for switching between setpoint values

APPLICATION

Application

Rectangular CONSTANTFLOW CAV controllers of Type EN for the precise supply air or extract air flow control in constant air volume systems
Mechanical self-powered volume flow control without external power supply
Simplified project handling with orders based on nominal size

Special characteristics

Volume flow rate can be set using an external scale; no tools required
High volume flow rate control accuracy
Any installation orientation
Correct operation even under unfavourable upstream conditions (1.5 B straight section required upstream)

DESCRIPTION

Variants

EN: Volume flow controller
EN-D: Volume flow controller with acoustic cladding
Units with acoustic cladding and/or secondary silencer Type TX for demanding acoustic requirements
Acoustic cladding cannot be retrofitted

Construction

Galvanised sheet steel
P1: Powder-coated, silver grey (RAL 7001)

Parts and characteristics

Ready-to-commission controller
Damper blade with low-friction bearings
Bellows that acts as an oscillation damper
Cam plate with leaf spring
Scale with pointer to set the volume flow rate setpoint
Aerodynamic function testing of each unit on a special test rig prior to shipping

Attachments

Min/Max actuators: Actuators for switching between minimum and maximum volume flow rate setpoint values
Modulating actuators: Actuators for the stepless adjustment of volume flow rates or to switch between minimum and maximum volume flow rate setpoint values
Retrofit kits: Actuators and installation accessories

Useful additions

Secondary silencer Type TX
Heat exchanger Type WT

Construction features

Rectangular casing
Flanges on both sides, suitable for duct connection

Materials and surfaces

Casing and damper blade made of galvanised sheet steel
Leaf spring made of stainless steel
Polyurethane bellows
Plain bearings with PTFE coating

Variant with acoustic cladding (-D)

Acoustic cladding made of galvanised sheet steel
Rubber profile for the insulation of structure-borne noise
Lining is mineral wool

Mineral wool

To EN 13501, fire rating class A1, non-combustible
RAL quality mark RAL-GZ 388
Biosoluble and hence hygienically safe according to the German TRGS 905 (Technical Rules for Hazardous Substances) and EU directive 97/69/EC

Technical information

Functional description

The volume flow controller is a mechanical self-powered unit and works without external power supply. A damper blade with low-friction bearings is adjusted by aerodynamic forces such that the set volume flow rate is maintained within the differential pressure range.

The aerodynamic forces of the airflow create a closing torque on the damper blade. The bellows extends and increases this force while at the same time acting as an oscillation damper. The closing force is countered by a leaf spring that unrolls over a cam plate. The shape of the cam plate is such that a change in the differential pressure leads to an adjustment of the damper blade in a way that the volume flow rate is maintained almost exactly.

Efficient commissioning

The volume flow rate setpoint value can be set quickly and easily using the pointer on the external scale; no measurements are required.

The advantage over flow adjustment dampers is that there is no need for repeat measurements or adjustments by an air conditioning engineer. Should the system pressure change, e.g. by opening or closing of duct sections, the flow rates in the entire system will also change if flow adjustment dampers are used; however, this is not the case with mechanical self-powered volume flow controllers. A mechanical self-powered controller reacts immediately and adjusts the damper blade such that the set constant volume flow rate is maintained.

Rectangular volume flow controllers for constant air volume systems, mechanical self-powered, without external power supply, suitable for supply or extract air, available in 19 nominal sizes.

Ready-to-commission unit consists of the casing containing a damper blade with low-friction bearings, bellows, external cam plate and leaf spring.

Volume flow controllers without actuators are factory set to a reference volume flow rate (customers can set the required volume flow rate on site).

Both ends suitable for the connection of air duct profiles.

Casing air leakage to EN 1751, class C (B + H ≤400, class B)

Special characteristics

Volume flow rate can be set using an external scale; no tools required
High volume flow rate control accuracy
Any installation orientation
Correct operation even under unfavourable upstream conditions (1.5 B straight section required upstream)

Materials and surfaces

Casing and damper blade made of galvanised sheet steel
Leaf spring made of stainless steel
Polyurethane bellows
Plain bearings with PTFE coating

Variant with acoustic cladding (-D)

Acoustic cladding made of galvanised sheet steel
Rubber profile for the insulation of structure-borne noise
Lining is mineral wool

Mineral wool

To EN 13501, fire rating class A1, non-combustible
RAL quality mark RAL-GZ 388
Biosoluble and hence hygienically safe according to the German TRGS 905 (Technical Rules for Hazardous Substances) and EU directive 97/69/EC

Construction

Galvanised sheet steel
P1: Powder-coated, silver grey (RAL 7001)

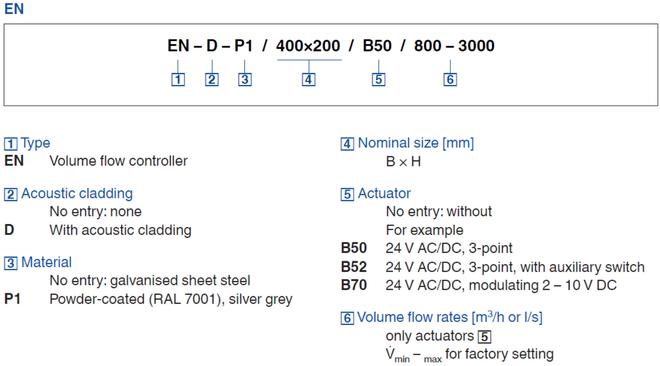

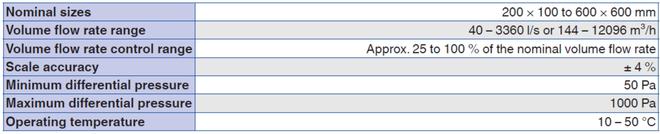

Technical data

Nominal sizes: 200 × 100 to 600 × 600 mm
Volume flow rate range: 40 to 3360 l/s or 144 to 12096 m³/h
Volume flow rate control range: approx. 25 – 100 % of the nominal volume flow rate
Differential pressure: 50 – 1000 Pa
