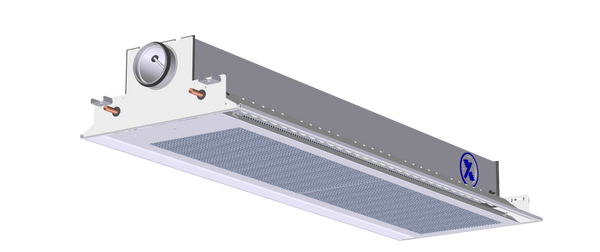

SVALBARD-I COMFORT

  • Can be integraded in different types of system ceilings

  • Length 1200, 1800 and 2400 mm
  • Pressure independent VAV solution
  • Constant induction factor, also with variable airvolume
  • App with Bluetooth communication for easy commissioning and service
  • Capacity calculation and 3D simulation in AURASIM
  • Full control of air volume give lower noise production
  • Larger cooling coil for maximum cooling capacity possible
  • All in one unit, save time and costs during installation

APPLICATION

Svalbard-I Comfort can be used for ventilation and water based cooling and heating for offices, meeting rooms, education areas etc. The chilled beam give high cooling capacity without draft in the occupied zone. Svalbard-I Comfort can be integrated in different types of system ceiling with 600 mm modules. The operating costs are reduced by increased cooling capacity with lower airflow. This give optimal comfort and lower energy consumption.

DESCRIPTION

The Svalbard-I Comfort is made of galvanized steel and is painted in RAL 9003 gloss 30. The measuring cross is made of aluminum, hoses, nipples and motor casing are plastic. The battery consists of copper tubes and aluminum slats. The connection for primary air is fitted with EPDM rubber gasket.

INSTALLATION

The Svalbard-I Comfort is supplied with four suspension brackets that is attached to the baffle's short ends, by hooking the brackets into the square slots on the gables. You have the possibility of adjusting +/- 10 mm in the width direction, and vertically using threaded rod. It is recommended to use impact anchors or similar when fastening in concrete.

TECHNICAL INFORMATION

  • ORDER CODE

Downloads

product information

  • Svalbard-I Comfort - Technical leaflet

    Technical leaflet 1,6 MB pdf

  • X-Sense

    Technical leaflet 840 KB pdf

brochures

  • Sales brochure Type Svalbard-I Comfort

    Sales brochure 15 MB pdf

certificates

  • Declaration of Conformity

    Declaration of Conformity 200 KB pdf

  • Declaration of hygiene conformity - Svalbard-I Comfort

    900 KB pdf

  • EPD-Svalbard-I Comfort

    Declaration 1,6 MB pdf
