TIR

  • TIR – freely suspended with adjustable throw length


APPLICATION

TIR is the ideal solution when high air flow rates are required, and is primarily intended as a freely suspended unit. It can, as an example, be used to supply hot or cold air to the occupied zone in rooms with high ceilings.

Design
TIR comes with a perforated face-plate and with fixed slot-height to the diffuser cover which is also the absorption mat. Fitted underneath the face-plate is a string-operated sector shutter where the air flow rate, and thus also the supporting air jet and throw length, are regulated. With a deflector, the slot can be adjusted to provide a vertical air flow (see fig. 4, last page).

DESCRIPTION

Materials and surfaces
Supplied in a galvanised, steel-plated finish. Other materials and colours are available upon request.

INSTALLATION

TIH-1 and 2 are equipped with flange for attachment to duct.

Teknisk information

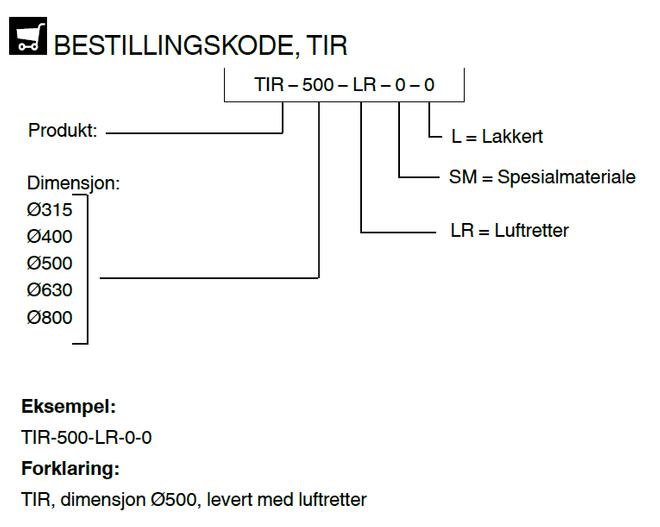

  • ORDER CODE

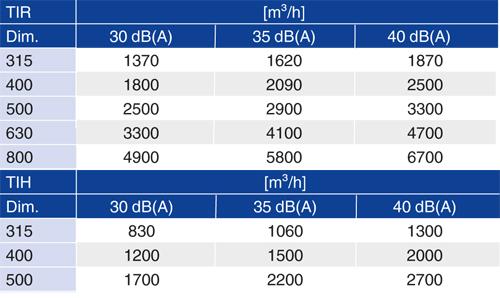

  • QUICK SELECT
TIR-Bestilingskode

Nedladdningar

produkt information

certifikat
