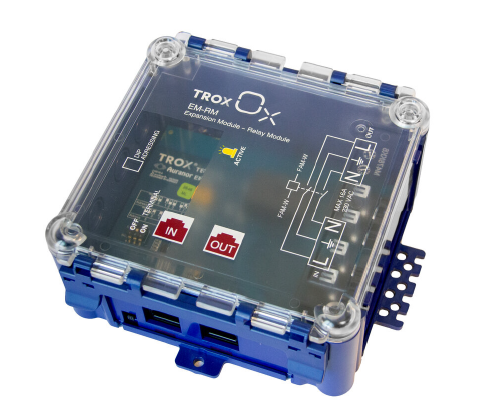

EM-RM

EM-RM is an expansion module with relay functionality for TROX Ox room-control applications.

The module provides one relay output and is used for switching external loads such as lighting or other on/off functions controlled by FAM-W.
EM-RM communicates with FAM-W via I²C and is connected using a standard Cat6 patch cable with RJ45 connectors. Up to four EM modules can be connected in daisy chain. The relay function is configured in the TROX Ox ServiceApp.

General information

Application

EM-RM is an expansion module with relay functionality for TROX

Ox room-control applications. The module is used when an additional relay output is required from a FAM-W room controller.

Typical applications include lighting control based on PIR presence detection or a light switch connected to FAM-W. EMRM can also be used for relay output control based on heating demand, cooling demand, second-stage heating or second-stage cooling.

The control logic is handled by FAM-W. EM-RM provides the physical relay output and is configured in the TROX Ox ServiceApp.

Functional description

EM-RM communicates with FAM-W via I²C communication. The module is connected to the FAM-W expansion module port using a standard Cat6 patch cable with RJ45 connectors.

Each EM-RM includes one normally open relay output. Several EM modules can be connected in daisy chain, with up to four modules connected to one FAM-W. The maximum cable length between two units is 10 m.

Each module is assigned an address from 1 to 4 using DIP switches. Each EM-RM connected to the same FAM-W must have a unique address.

EM-RM has one relay input and one switched relay output. The voltage connected to the relay input is made available on the relay output when the relay is activated. EM-RM receives its operating voltage from FAM-W via the RJ45 connection, but the voltage to be switched must be connected separately to the relay input.

The relay function is configured in the TROX Ox ServiceApp.

Each EM-RM in the daisy chain can be assigned an individual function.

EM-RM can be configured for different room-control functions, including:

Light control: Relay output controlled by PIR presence detection or light switch connected to FAM-W

Heating demand: Relay output activated based on heating demand

Cooling demand: Relay output activated based on cooling demand

Second-stage heating: Relay output activated when the room temperature is further away from setpoint than the configured second-stage heating threshold

Second-stage cooling: Relay output activated when the room temperature is further away from setpoint than the configured second-stage cooling threshold

The adjustment points and control conditions are configured in FAM-W using the TROX Ox ServiceApp.

Technical information

EM-RM/TUH

1 Type
EM-RM/TUH

Communication to FAM-W: I²C

Connection to FAM-W: RJ45 socket

Recommended cable: Standard Cat6 patch cable

Maximum cable length between units: 10 m

Maximum number of EM modules: 4 modules in daisy chain

Addressing, DIP switches: address 1–4

Number of relay outputs: 1

Relay contact: Normally open NO

Relay rating: 230 V AC, 16 A continuous operation

Typical application: Lighting control and external on/off control

Operating voltage for EM-RM: Supplied from FAM-W via RJ45 connection

Switched voltage: Connected separately to relay input

Relay connection: Wago Winsta plug connection

Housing, TROX Universal Housing: TUH

Casing material: ABS plastic

Casing colour: Blue, RAL 5002

Cover: Transparent

Protection degree: IP20

Dimensions: 141.8 × 159 × 64.3 mm

Operating temperature: 10–50 °C

Ambient humidity: 95% RH, non-condensing

Mounting: Wall, ceiling or ventilation duct using fixing brackets

Downloads

product information

Product data sheet EM-RM

EM-RM--Version-NOR-2-_PD_2026_09_25_DE_en Product data sheet 530 KB pdf
