USI

  • Large capacity
  • Available with integrated sound attenuator
  • Cleanable
  • Easy installation – ideal for renovation work
  • Suitable for schools and large premises
  • Dimensions from Ø200 – Ø500

APPLICATION

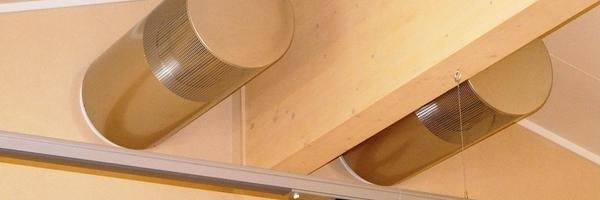

The USI extract air terminal is intended for open installation. It is suitable for high air fl ow rates, and can thus be used as a central extraction unit in large rooms – ideal in combination with VAV.

Design
The valve is available with and without integrated sound attenuator.

DESCRIPTION

Materials and surfaces
The device is made of galvanised steel, and comes in RAL 9003 - gloss 30. Other colours are available on request.

Technical information

  • Order Code
  • Quick Selection

Downloads

product information

  • Type USI

    Technical Leaflet 1,6 MB pdf
