UPK

UPK
  • Bespoke dimensions, BxH variants
  • Available with and without plenum box


UPK with ATK plenum box
  • Grille with mounting frame
  • Removable damper for easy cleaning
  • ATK box lined with Ecoson attenuation material

APPLICATION

UPK

UPK is an air-extract grille for wall mounting. It is available in bespoke dimensions and can thus be adapted to fi t various groove dimensions or pre-installed boxes.

Design
The UPK features square perforation. It is available with pre-drilled holes and enamelled screws. Grilles exceeding 2 m² are split.e.




UPK with ATK plenum box

The ATK plenum box is used for improved sound attenuation and commissioning options. This rectangular box is fitted with a removabledamper which provides access to the connecting duct.

Design
The ATK box features a damper for commissioning. ATK-B, S and LS are equipped with measuring point. The box is insulated with Ecoson.


DESCRIPTION

UPK

The grill is made in steel, and comes in a RAL 9003 - gloss 30 finish. It is fitted with polyurethane moulding. Other materials and colours are available on request.


UPK with ATK plenum box

The grill is made in steel, and comes in a RAL 9003 - gloss 30 finish. It is fitted with polyurethane moulding. Other materials and colours are available on request.


INSTALLATION

UPK with ATK plenum box

ATK box and mounting frame are assembled as shown in fig. 8, and the air-extract grille is then positioned in the mounting frame. Installation principle for ATK-H is illustrated in fig. 9.

Technical information

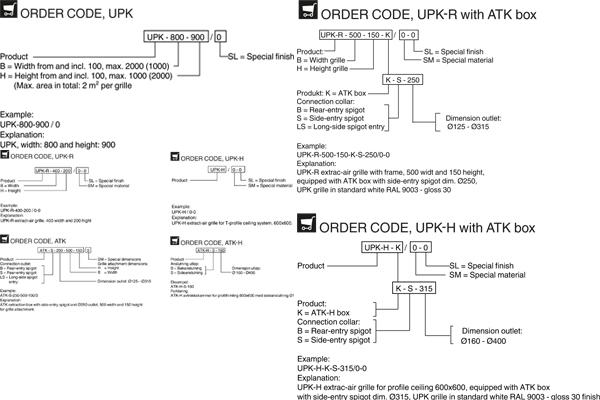

  • ORDER CODE
  • QUICK SELECTION

Downloads

product information

certificates
