DSO

  • Broad adjustment range
  • Easy commissioning

APPLICATION

DSO is an extract air terminal device for ceiling or wall mounting.

Design
DSO features an adjustable centre cone for air fl ow rate commissioning. Supplied with mounting frame, DKT, for circular duct..

DESCRIPTION

Materials and surfaces
DSO is made of steel, and comes in a RAL 9003 - gloss 30 finish. Other colours are available on request. DKT is fitted with a rubber gasket on the connection collar.

INSTALLATION

Separate mounting frame (DKT) is attached to the duct by using blind rivets or self-drilling screws. The valve is then screwed into the mounting frame. Installation principle is shown in fig.

Technical information

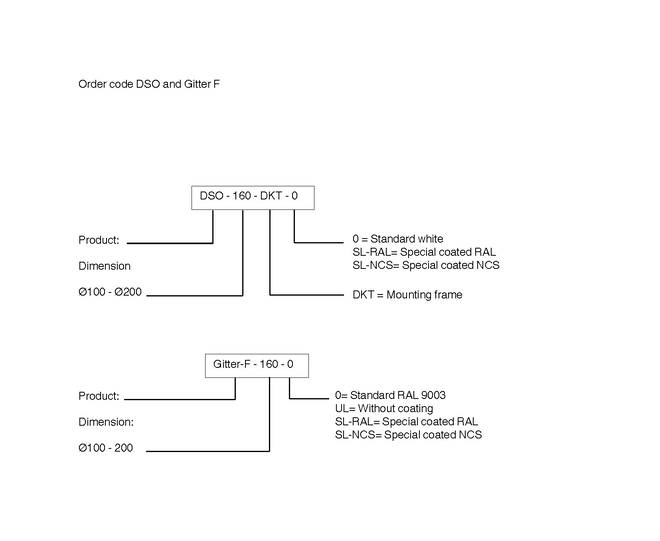

  • ORDER CODE
  • QUICK SELECTION

Downloads

product information

  • Type DSO

    Technical Leaflet 960 KB pdf

certificates

  • Statement/egenerklæring

    Statement 700 KB pdf
