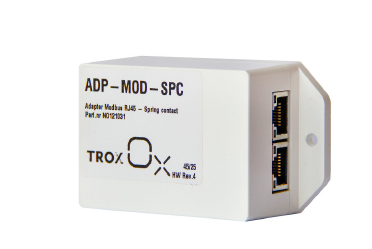

ADAPTER FROM RJ45 TO SPRING TERMINALS FOR MODBUS COMPONENTS, WITH DAISY CHAIN POSSIBILITY TO NEXT MODBUS COMPONENT

General information

Application
ADP-MOD-SPC is used in TROX Ox room-control applications where Modbus field devices are connected to a FAM-W port via spring terminals. Typical applications include VAV-actuators with wire connections, control panels and Modbus connected sensors. The adapter is suitable for new installations and refurbishment projects where field wiring is terminated locally.


Functional description
ADP-MOD-SPC is a connection adapter for TROX Ox applications. It converts the RJ45 connection from a Modbus FAM-W port to clearly labelled spring terminals, enabling fast and reliable connection of Modbus devices which are approved
by TROX. The adapter is intended for applications where field wiring has to be terminated directly instead of using a patch cable to the device. Key features Simple transition from RJ45 patch cabling to field wiring. Clearly labelled terminals for faster installation. Supports typical room-control components such as control panels, sensors and VAV-actuator with Modbus communication. Reduces the risk of wiring errors when used together with the documented wiring diagrams.


Technical data
The adapter provides spring terminals for the following terminal labels: B+, A-, 24 V, 24 V, GND and GND. The available function depends on the configuration of the connected FAM-W port. The adapter does not change the electrical function of the port; it only provides spring terminals for the selected function. Always configure and verify the FAM-W port before connecting field devices. Supported connection examples 24 V on/off thermoelectric valve actuator. The adapter can be used as an analogue/digital adapter, but then the daisy chain connection cannot be used. Modbus operation cannot be combined with analogue input/output or digital input on the same port.


Installation and commissioning
Install the adapter close to the connected field device or close to the FAM-W connection point. Connect the RJ45 patch cable from the Modbus FAM-W port to the adapter. Connect the field device cable to the spring terminals according to the selected wiring diagram. The terminal assignment must match both the selected FAM-W port function and the connected device type. Check polarity for 24 V supply and 0–10 V signals before commissioning. If the connected Modbus device does not contain necessary resistor to provide the Modbus communication to work, the manual switch on the ADP-MOD-SPC can be enabled to provide end resistance.
